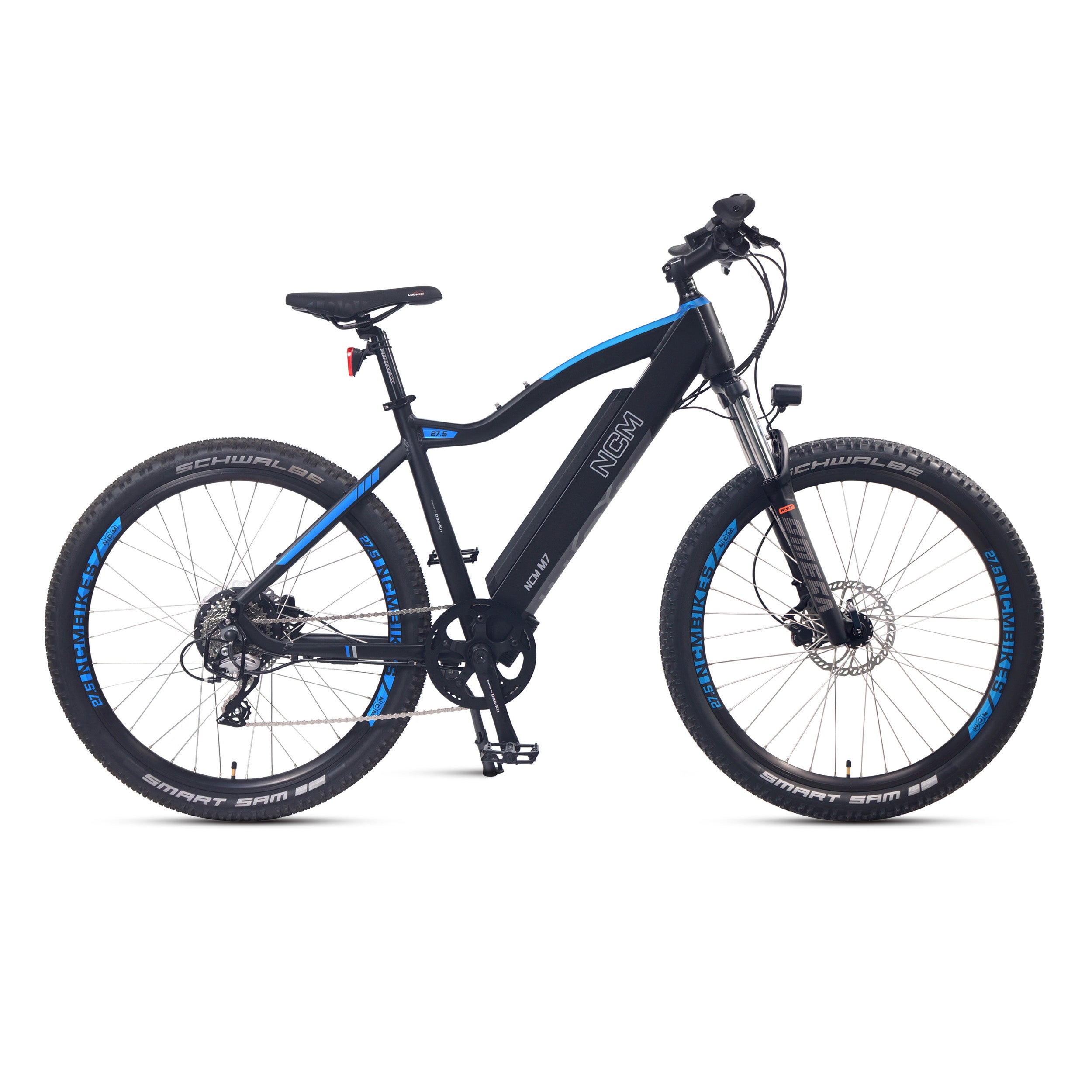

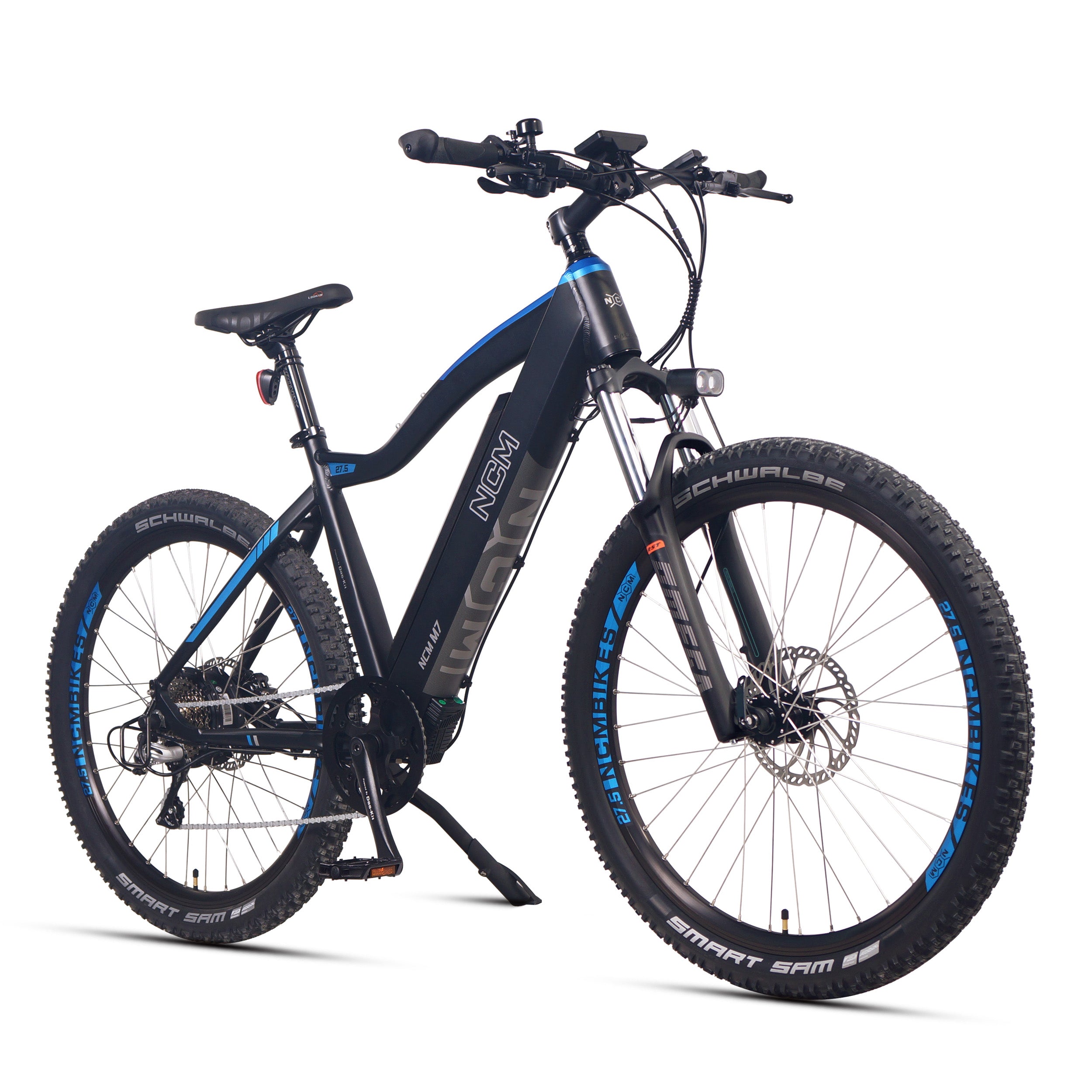

NCM M7

Price
8,200 NIS
Color:Black

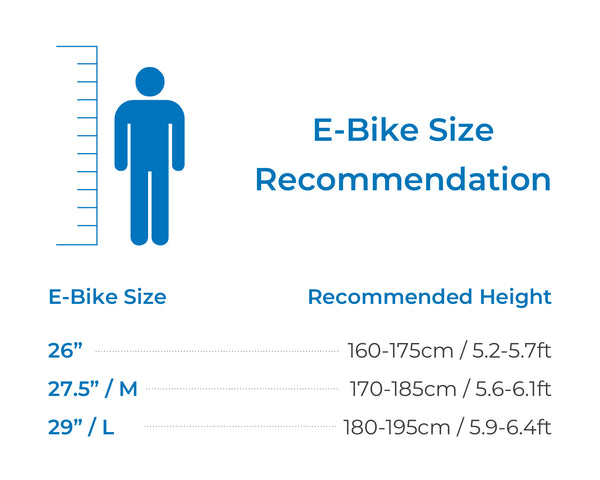

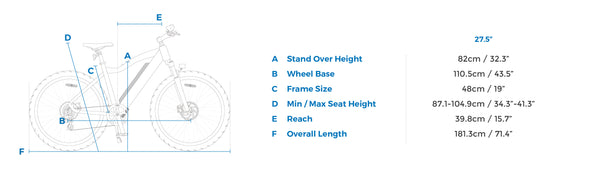

Size:27.5" (Recommended Height: 170-185cm / 5.6-6.1ft)
Pre-sales!

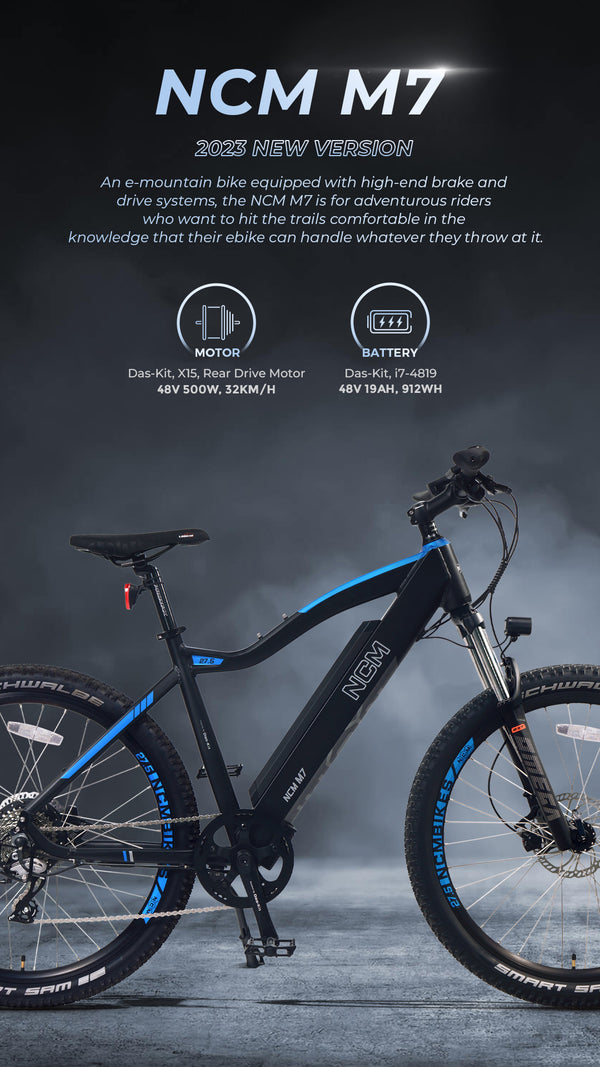

An e-mountain bike equipped with high-end brake and drive systems, the NCM M7 is for adventurous riders who want to hit the trails comfortable in the knowledge that their ebike can handle whatever they throw at it.
Shipping Information

HANDLEBAR

SUPPLIED WITH A HIGHOUTPUT POWER

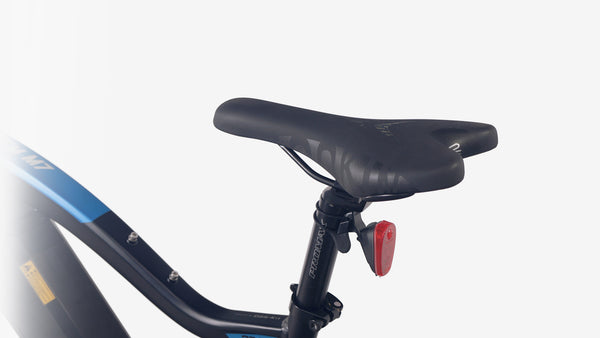

ERGONOMIC SADDLE

Product Specifications

BIKE COMPONENTS

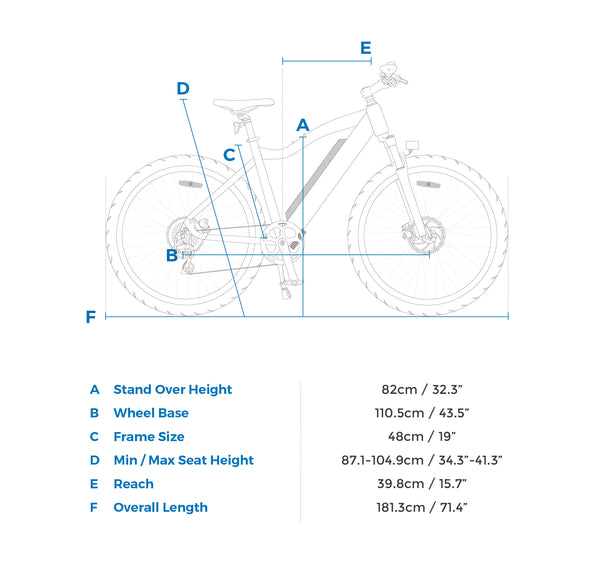

Frame: Alu. 6061, 27.5x19"

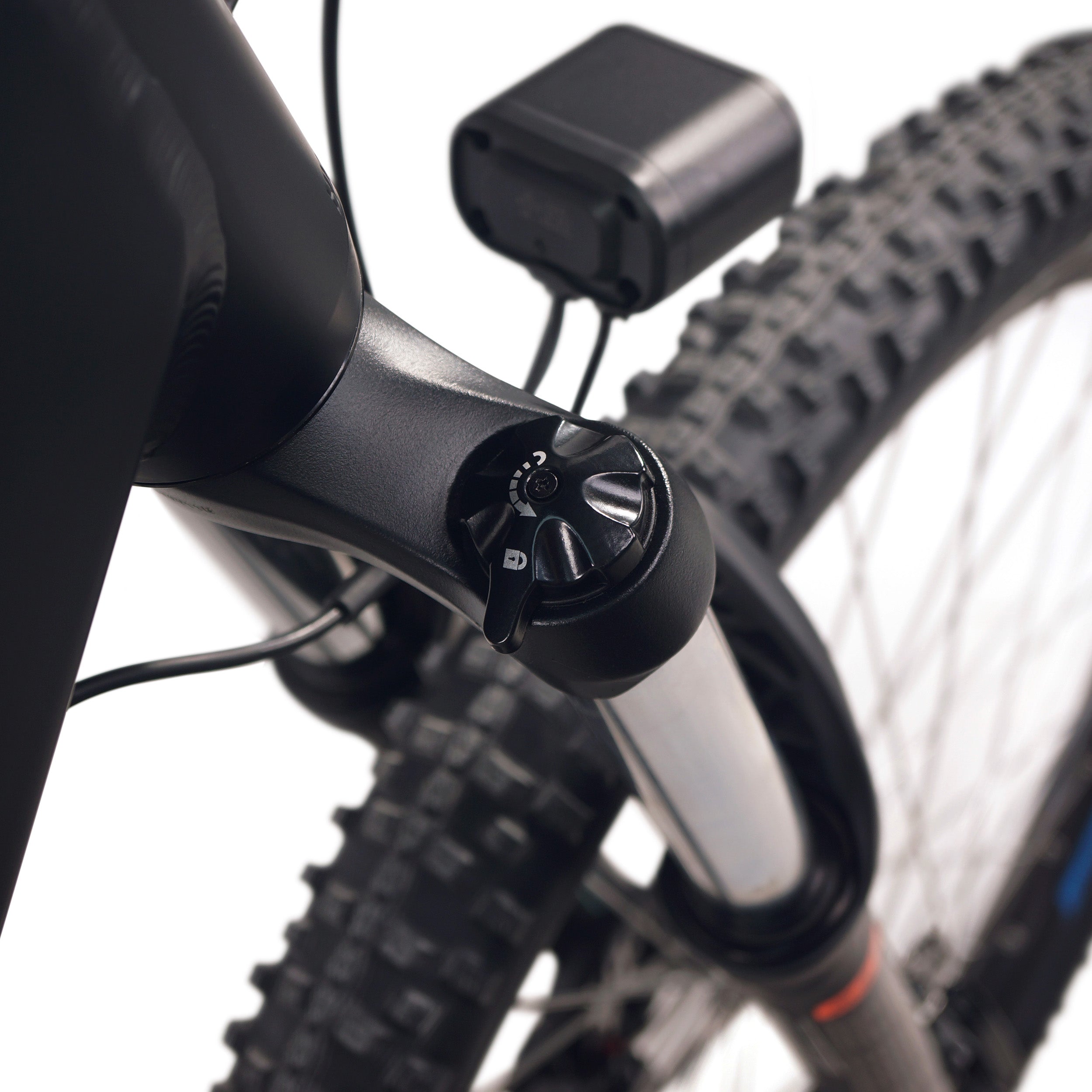

Suspension Fork: RST, OMEGA-TNL-27.5, with hydraulic lock system

Brake: F: Das-Kit, hydraulic disc brake, DK-100E, 180mm rotor
R: Das-Kit, hydraulic disc brake, DK-100, 180mm rotor

Freewheel: 8 Speed, 11-32T

Tire: Schwalbe, Smart Sam, 27.5x2.35

Saddle: Selle Royal, Lookin-A200UR

Stem: Promax, Alu.MA-471

Crank: Das-Kit, 52T

Shifter Right: Shimano, Altus, R: SL-M315-8R, 8 Speed

Rear Derailleur: Shimano, Acera, RD-M360

Chain: KMC, Z8.3RB, Silver

ELECTRIC COMPONENTS

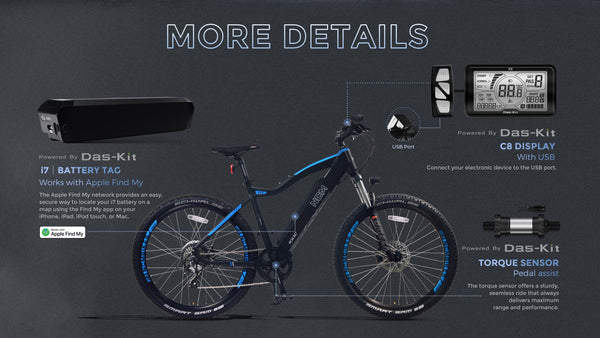

Battery: Das-Kit, i7-4819, 48V 19AH, 912Wh, with TAG Technology

Motor: Das-Kit, X15S, rear drive motor, 48V 750W, up to 28MPH with pedal assist, 20MPH with throttle

Controller: Das-Kit, T7, 48V 22A

Charger: Das-Kit, DK483, 48V 3A

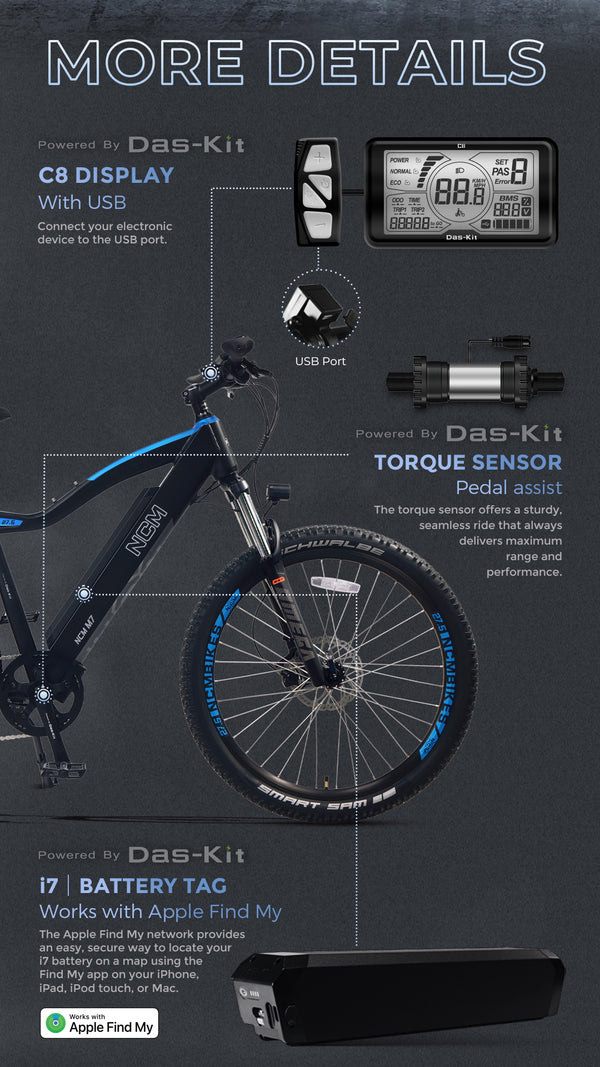

Display: Das-Kit, C8, with USB

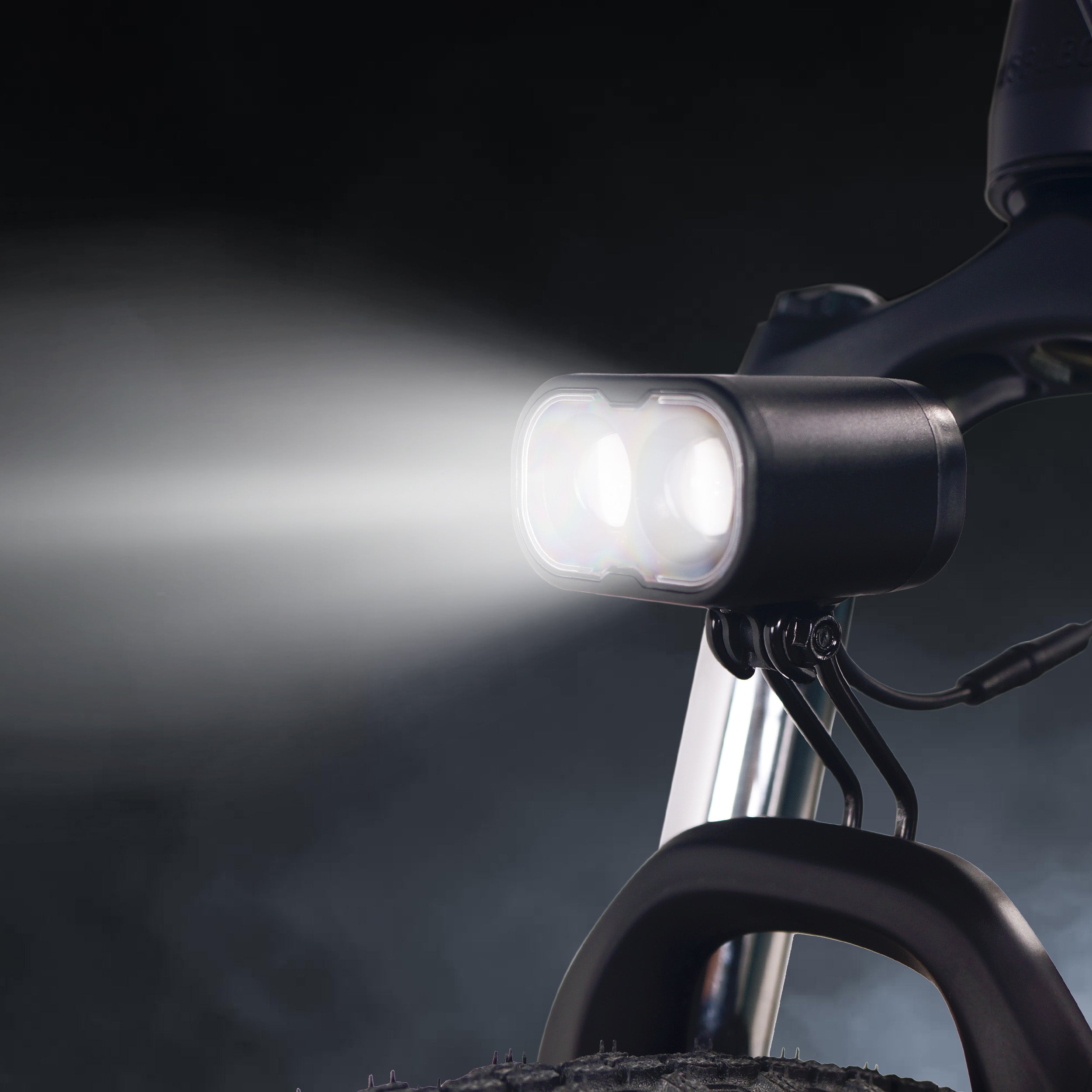

Front Light: DH007Plus, 48V, 70Lux

WEIGHT

NCM M7 27.5":

Weight (without battery): 23KG (50.7lbs)

Battery Weight: 4.8KG (10.6lbs)

Max Load (rider+bike): 125KG (275.6 lbs)
